HIGHFLOW Hot Stab

Download the Datasheet

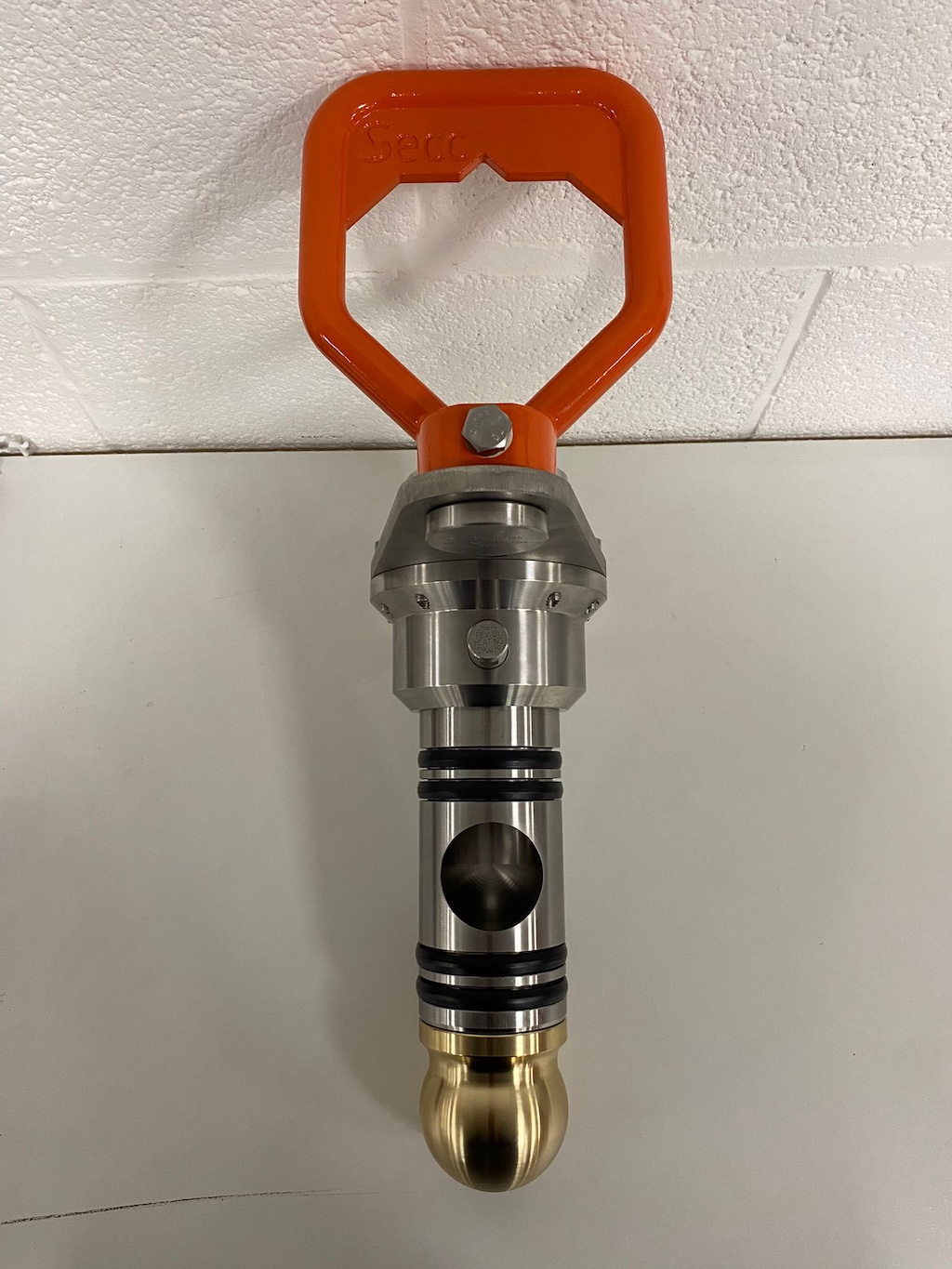

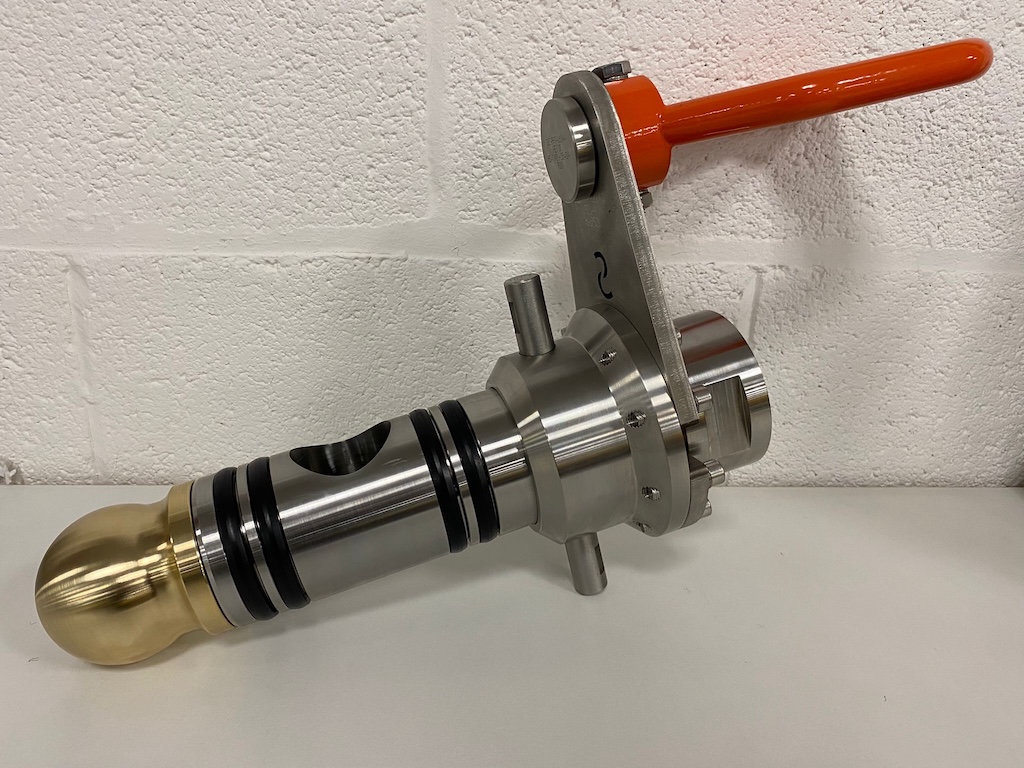

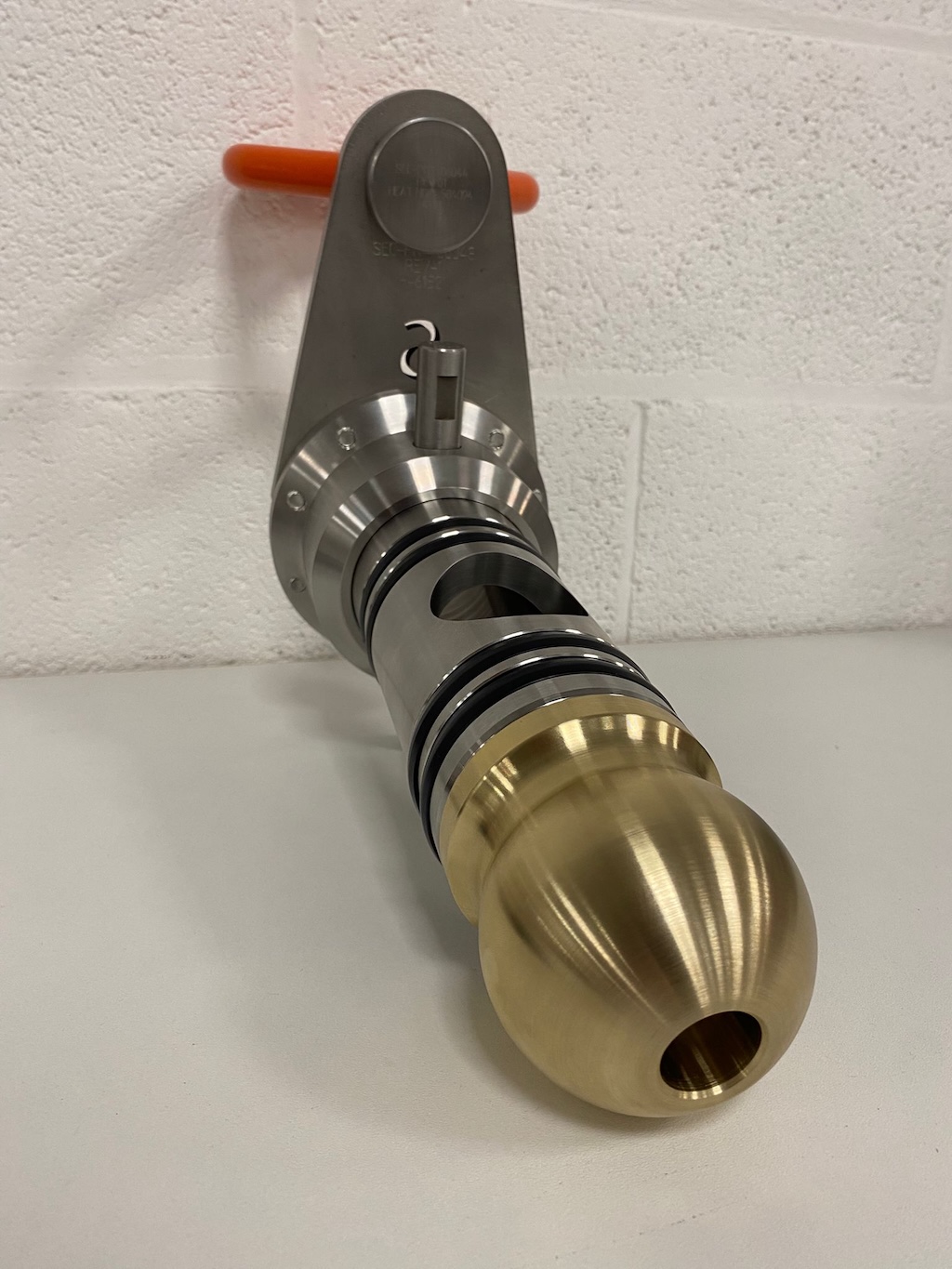

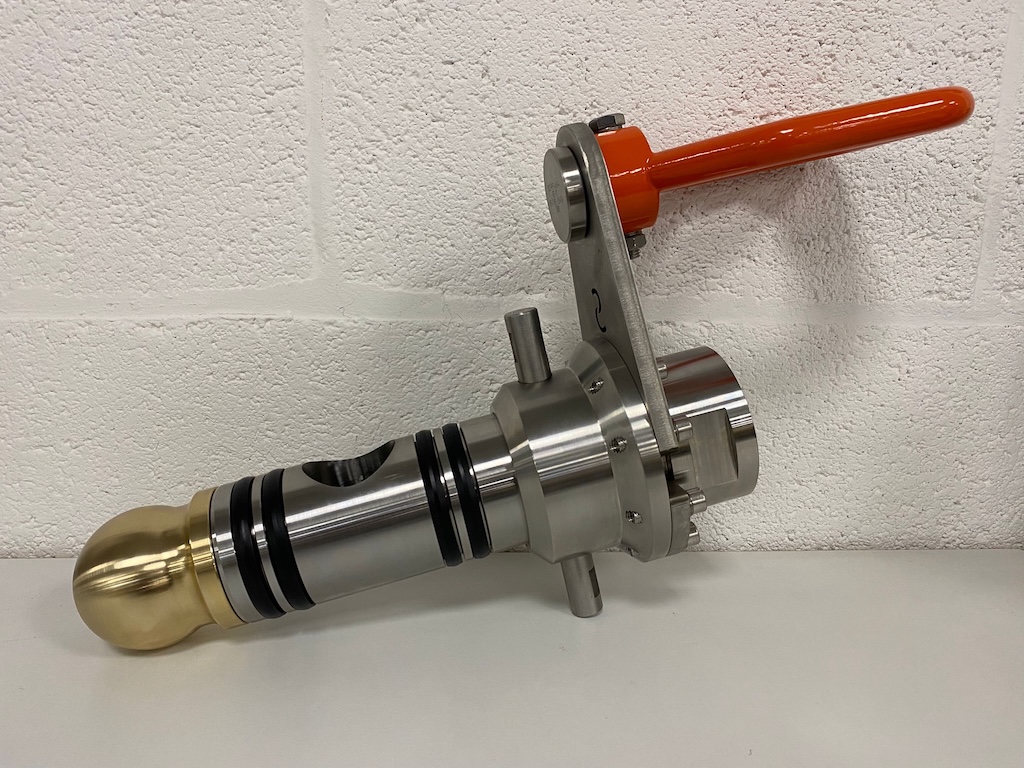

The HIGHLFOW Hot Stab is a full-bore, pressure-balanced Hot stab connector and receptacle.

The balanced 90 ° geometry provides minimal pressure drop across the coupling and zero hydrostatic force.

Secc’s male Hot Stab and female Receptacle assemblies have offered robust, simple, HIGHFLOW, “plug & play” operation up to 15,000PSI, for over 20 years.

Features

  • Full-bore, HIGHFLOW: minimal pressure drop across connector
  • Pressure balanced design: No Hydrostatic axial loading
  • Activates under full working pressure
  • DNV qualified API6A 17D to PSL3 PR2 for Other End Connectors (OEC)
  • Supplied as a Hot Stab and Female receptacle
  • Locking handle included
  • Compatible with a wide range of fluid media, including but not limited to:
    • Hydraulic control fluid
    • Acid stimulation
    • Scale inhibitors
    • Cement for P&A work
  • Applications
    • Intervention
    • Manifolds
    • Subsea tooling
    • Cementing and P&A work
    • Decommissioning
    • Work over & well stimulation
    • Drilling
    • Pipeline pre-commissioning and commissioning
    • Vessel to rig fluid transfer
    • Waste water transfer
    • Condensate transfer
    • Oil Transfer
Bore Sizes

1/2”, 1” and 2”

Design Pressure

Up to 15,000 psi [690bar]
Water Depth

Up to 10,000 ft. [3048m]
Operating Temperature

-18ºC to 121ºC
Flow Path

90°, full bore with no restrictions to the flow path
Male & Female End Fittings

API Flange
Threaded (JIC or NPT)
Destec or Grayloc Hubs
H/P Autoclave
Weld Preparation
(Other end connections available)
Elastomeric Seals

HNBR, Viton (FKM) or Perfluoroelastomer (FFKM)
Materials

Super Duplex, Inconel and S316 Stainless Steel
Connection Methods

ROV - Fishtail, T-Bar, or Grab Handle
Manual Topside
Alignment Method

J-Type Latch
Disconnection Method

ROV Pull-Out
Breakaway Control

J-Type Latch
Dimensions & Weights

Please refer to individual data sheets
Flow Rates

For specific flow information, please contact Secc
