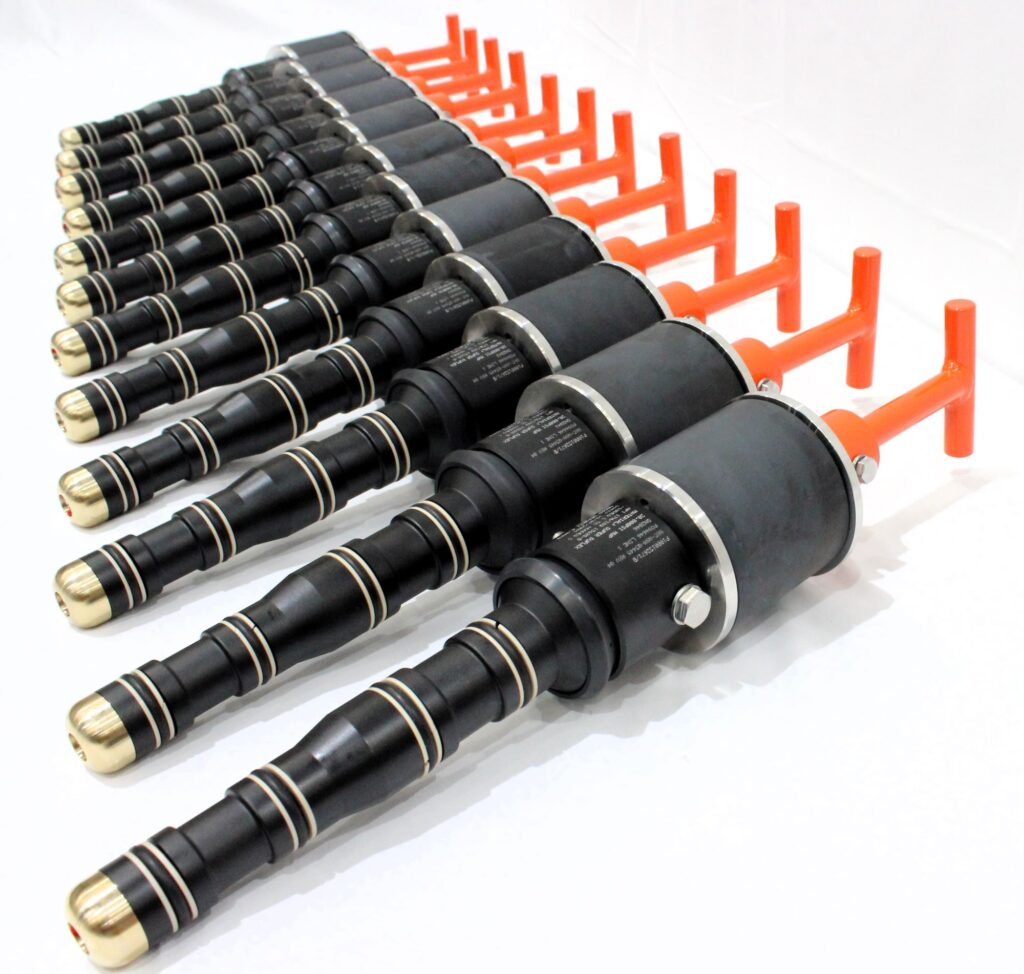

API Type 2 Hot Stab

API HOT STAB – Type 2 – Dual Bore Multiport (Taper)

The TYPE 2 Hot Stab is a pressure-balanced Hot stab connector and Receptacle.

Typically has 2 individual ports using a tapered design, each of the ports is located on a different seal bore.

Non-standard design has seen 6 individual ports located on 2 seal diameters

Internal bore and hydraulic ports can be optimised depending on size, design pressure, interface requirements, and number of ports.

Vent port “O” is required to prevent a hydraulic lock during insertion and removal of the hot stabs.

Secc’s male Hot Stab and female Receptacle assemblies have offered robust proven operation up to 15,000PSI, for over 20 years.

Features

• Design and testing in accordance with API 17D Type 1 requirements.
• Pressure balanced design: No Hydrostatic axial loading
• Activates under full working pressure
• DNV qualified API6A 17D to PSL3 PR2 for Other End Connectors (OEC)

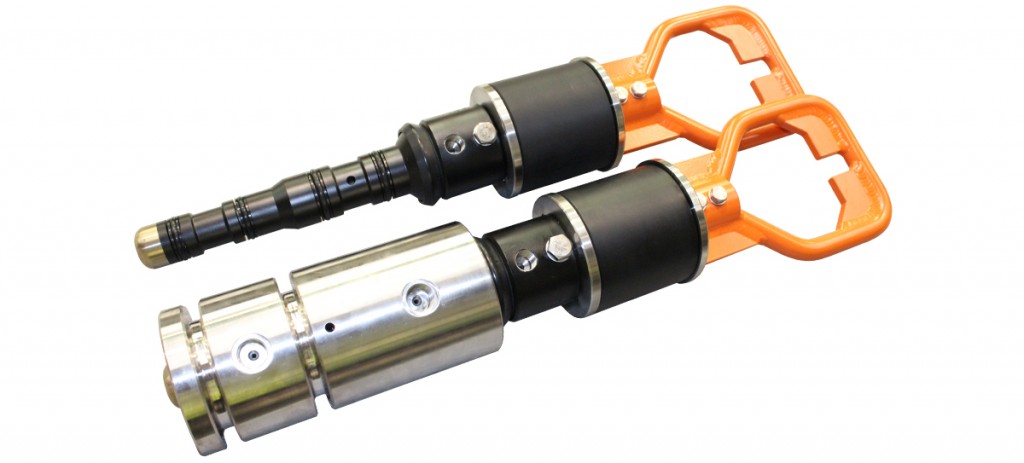

• Supplied as a Hot Stab and Female receptacle
• Locking handle included
• Various handle types
• Compatible with a wide range of fluid media, including but not limited to:
  • Hydraulic control fluid
  • Acid stimulation
  • Scale inhibitors
  • Cement for P&A work
• Applications
  • Intervention
  • Manifolds
  • Subsea tooling
  • Cementing and P&A work
  • Decommissioning
  • Work over & well stimulation
  • Drilling
  • Pipeline pre-commissioning and commissioning
